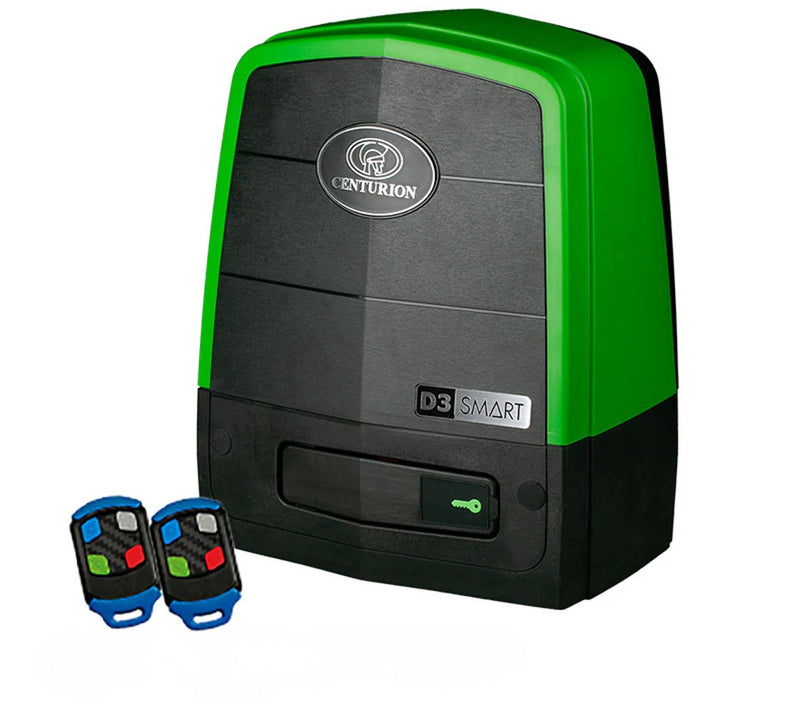

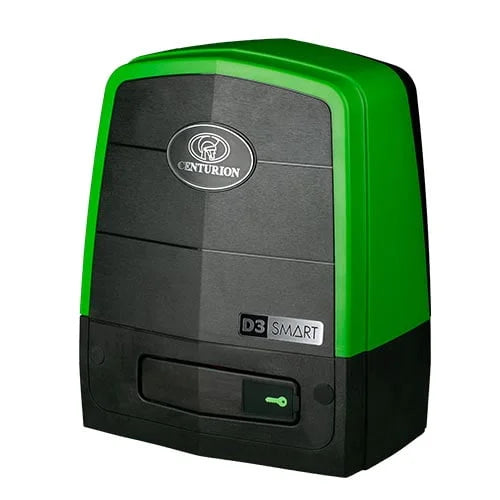

CENTURION D3 SMART SLIDING GATE MOTOR
CENTURION D3 SMART SLIDING GATE MOTOR
In stock
Description
Description
The Centurion D3 SMART Gate Motor is a compact, modern sliding-gate operator engineered for residential driveways and light-duty gates. It blends powerful gate automation with smart-home convenience — enabling control via remote transmitters or smartphone (with the right accessories), while remaining reliable even during load-shedding thanks to its battery-driven system.
Designed for smooth, secure gate operation, the D3 SMART is ideal for homeowners who want to upgrade manual gates to automated sliding gates with minimal fuss. Its weather-resistant build, safety features and straightforward installation make it a popular choice for everyday use.
Key Specifications & Features
-
Power supply / Motor type: 12 V DC (battery-driven) with built-in mains charger (Input 110 – 240 V AC, 50/60 Hz)
-
Battery charger output: 1.8 A @ 14.3 V ±5% (≈ 28 W)
-
Mains current consumption (idle / standby): 320 mA peak
-
Motor current consumption (under rated load): 11 A
-
Gate mass (max): Up to 300 kg sliding gate
-
Gate speed: Up to 24 m/min (maximum, depending on load); typical rated operating speed ~ 21 m/min
-
Motor push force: Starting push force 18 kgf, rated push force 12 kgf
-
Daily operation capacity: Up to ~20 full operations/day when mains power available; duty-cycle 25% under mains supply
-
Manual override: Lockable manual release with key, for manual gate operation if battery or mains fails.
-
Motor Protection / Electronics: Built-in fuse protection (Main Control Card 35 A), auxiliary supply fuse (12 V 300 mA resettable), slow-blow 3 A charger fuse for mains supply.
-
Remote Control Support: Built-in code-hopping multichannel receiver; stores up to 32 remotes (e.g. Nova remote transmitters at 433.92 MHz)
-
Safety & Features: Electronic collision sensing, obstacle detection / auto-stop, compatible with optional safety accessories (e.g. safety beams), theft-resistant cage (optional) for enhanced security.
-
Operating Temperature: −15 °C to +50 °C, suited for harsh weather conditions.
-
Degree of Protection (Ingress): IP55 — weather-resistant housing suitable for outdoor installations.
-
Pack/Unit Weight (excluding rack & battery): ~ 6.7 kg packed weight
