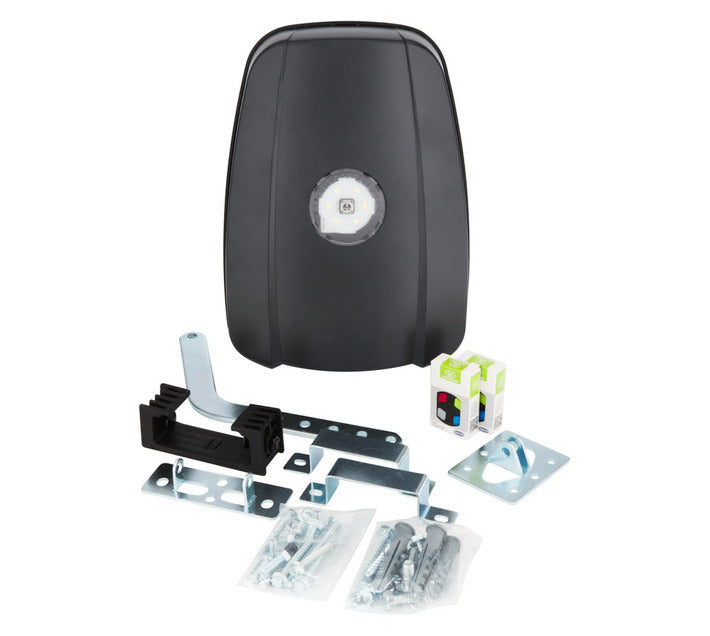

CENTURION T10 SMART GARAGE DOOR MOTOR
CENTURION T10 SMART GARAGE DOOR MOTOR
In stock
Description
Description
(Does not include shaft)
Automate your garage door with the Centurion SD04 T10 Smart (Does not include shaft) — a modern, battery-driven garage door operator that combines reliable performance, safety features, and smart functionality. Designed for single sectional or tip-up garage doors, this unit ensures smooth, quiet operation and keeps working even during power outages thanks to built-in battery backup. It’s ideal for residential garages, offering convenience (remote + app control), safety (obstruction detection, optional beams), and easy installation.
-
Power input (mains): 230V AC ±10% @ 50/60Hz
-
Motor voltage: 24V DC
-
Motor power: 80W DC
-
Battery backup: 2 × 12V 3.4Ah batteries (built-in)
-
Max door width: Up to 6.5m
-
Max door area: Up to 12m²
-
Max lifting / push–pull force: 1000N (≈ 40kgf)
-
Operating cycles on battery: Up to ±90 operations during power failure
-
Door speed: ±9 m/min (depending on installation & battery level)
-
Limit setting: Automatic limit setup with physical end-stops
-
Safety features:
-
Obstruction detection / anti-crushing system
-
Safety beam compatibility (optional IR beams)
-
-
Lighting: Built-in 2W LED courtesy light
-
Auto-close: Programmable auto-close function
-
Remote receiver:
-
Built-in 433MHz code-hopping receiver
-
Stores ±20 transmitters (4-button type)
-
-
Smart features:
-
“SMART” wireless setup
-
Supports smart-app integration (model dependent)
-
Advanced diagnostics & configuration menus
-
-
Application: Sectional or tip-up single garage doors
-
Installation: Easy ceiling/rail installation (6.5m max rail length)
Dimensions
Dimensions
- L:
- H:
- Cord:
- Ceiling Cup:
