SKU: C/SDT12S
CENTURION T12 SMART GARAGE DOOR MOTOR
CENTURION T12 SMART GARAGE DOOR MOTOR
In stock
Description
Description

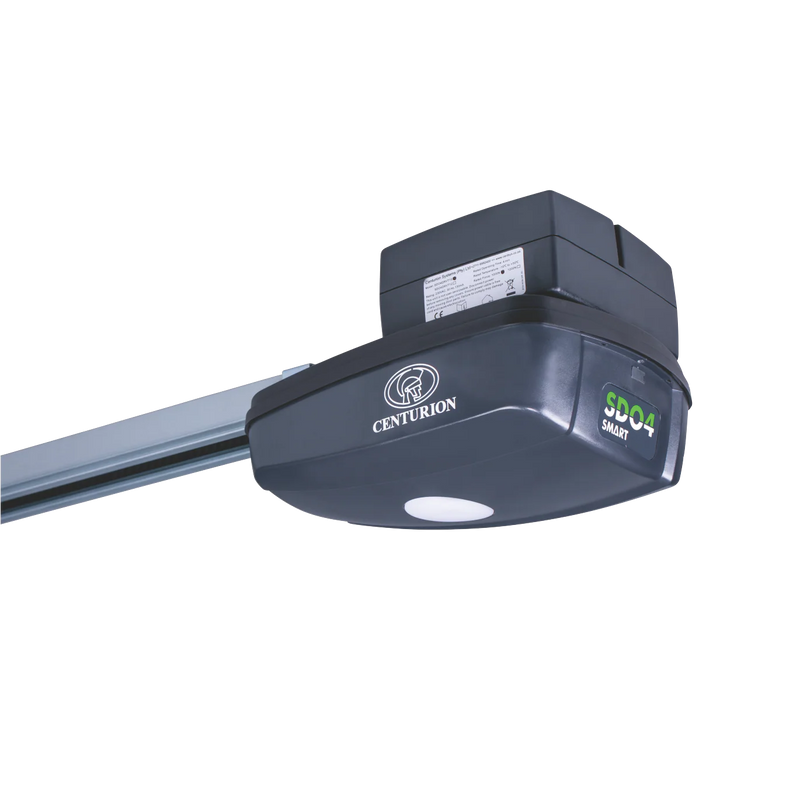

The Centurion SDO4 SMART T12 is a heavy-duty, feature-rich garage door operator built for reliability, convenience and safety. Its 24 V DC motor and SMART-system integration ensure smooth, quiet operation — whether on mains power or backup battery. Designed for larger or heavier garage doors, the T12 model supports sectional and tip-up doors, and is ideal for residential garages requiring robust performance, battery backup (for power interruptions), and smart-enabled control plus optional safety upgrades.

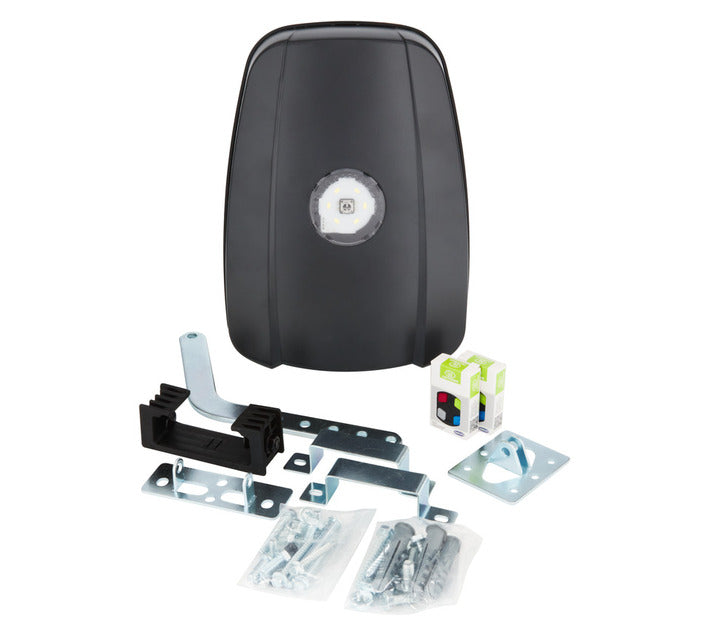

The T12 motor is engineered for user convenience: automatic limit-setting, built-in anti-crushing safety, programmable auto-close, and compatibility with wireless safety beams. It comes with battery backup, remote-control capability, and a built-in LED light — delivering a comprehensive, ready-to-install system.
-
Power input (mains): 230V AC ±10% @ 50/60Hz
-
Motor voltage: 24V DC
-
Motor power: 100W
-
Battery backup: 2 × 12V 3.4Ah batteries (included)
-
Maximum door width: Up to 6.5 metres
-
Maximum door area: Up to 15 m²
-
Maximum lifting force: 1200N
-
Maximum push/pull force: 50kgf
-
Operating cycles during power failure: Up to ±90 operations (door-weight dependent)
-
Door travel speed: ±9 m/min
-
Limit setting: Automatic limit setup with physical end-stops
-
Safety features:
-
Adaptive obstruction detection / anti-crushing
-
Auto-reverse on obstacle
-
Optional infrared safety beams
-
-
Lighting: Built-in 2W LED courtesy light
-
Auto-close: Programmable auto-close function
-
Remote receiver:
-
433MHz code-hopping receiver
-
Stores up to ±20 transmitters
-
-
Smart features:
-
SMART setup system
-
Compatible with app-based control (SMART ecosystem)
-
Advanced menu diagnostics
-
-
Suitable door types: Sectional and tip-up garage doors
-
Installation: Ceiling-mounted with 6.5m rail system
