1600W 24VDC INVERTER
1600W 24VDC INVERTER
Low stock
Couldn't load pickup availability
We accept
Description
Description

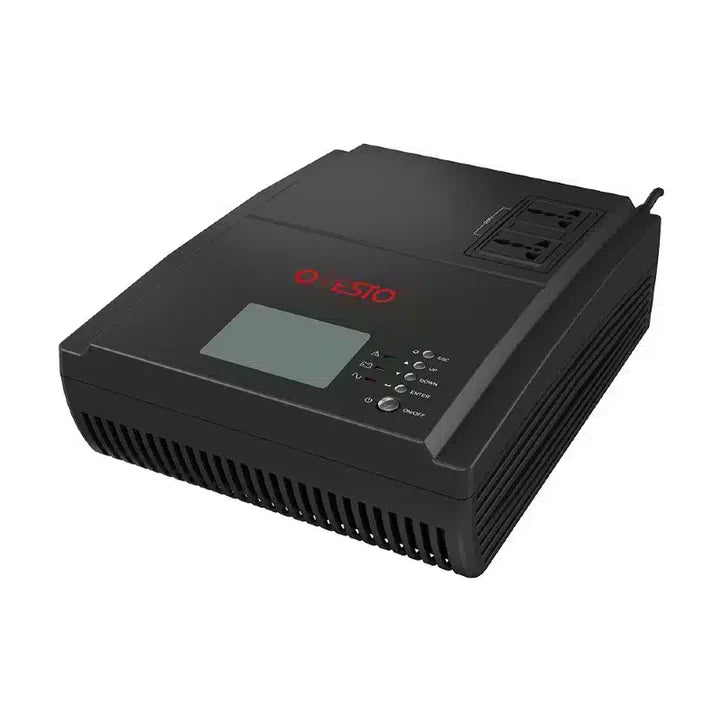

The ONESTO 1600 W 24 VDC inverter is a compact, off-grid (or backup) power inverter designed to convert 24 V battery power into 230 V AC — ideal for homes, offices, caravans, small cabins or backup-power solutions. It provides reliable AC power for lights, small appliances, laptops, routers/modems, TVs, and other low-to-moderate power devices, making it a practical choice for load-shedding backup or rural/off-grid installations. With built-in charging, protection features, and selectable input/output voltage settings, it offers flexibility, safety, and convenience.
Key Specifications & Features
-
Model / Type: ONESTO Off-Grid Inverter 24 V, 1600 W / 2000 VA (IP1600)
-
Battery Input (DC): 24 V DC
-
Rated Output Power (AC): 1600 W (2000 VA)
-
Output Voltage: 230 V AC (±10%) when on battery mode
-
Output Frequency: 50 Hz / 60 Hz (auto-sensing)
-
Waveform: Modified sine wave (simulated sine) output when on battery mode
-
Input (when on mains / AC-charging mode): Accepts 170–280 VAC (narrow range) or 90–280 VAC (wide range) depending on setting
-
Battery Charger (built-in): 3-stage charging control; selectable 10 A or 20 A charging current
-
Transfer / Switch-over Time (line → battery): ~ 20 ms typical
-
Protection Features:
-
Low battery alarm & shutdown
-
Overload protection
-
Over-charge protection (during charging)
-
Over-temperature protection
-
Short-circuit protection
-
-
Indicators & Alarm/Buzzer: LCD indicators for battery voltage and load percentage, audible buzzer alarms (beep for low battery, overload, fault) with mute option.
-
Additional Features: Built-in USB charger (5 V x 1 A max) for small device charging.
-
Operating Conditions: 0–50 °C ambient temperature, 0–90% relative humidity (non-condensing)
-
Physical Dimensions: Approximately 310 mm (depth) × 239 mm (width) × 93 mm (height)
