SKU: BL/6MM GR/100

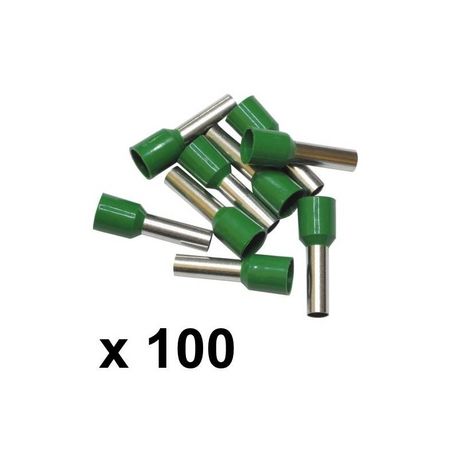

6MM BOOTLACE FERRULE 100 PACK
6MM BOOTLACE FERRULE 100 PACK
Out of stock
Description
Description

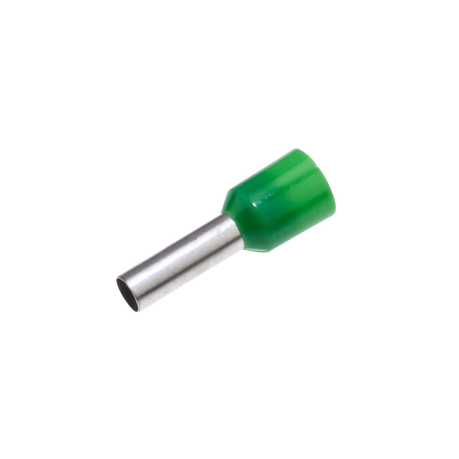

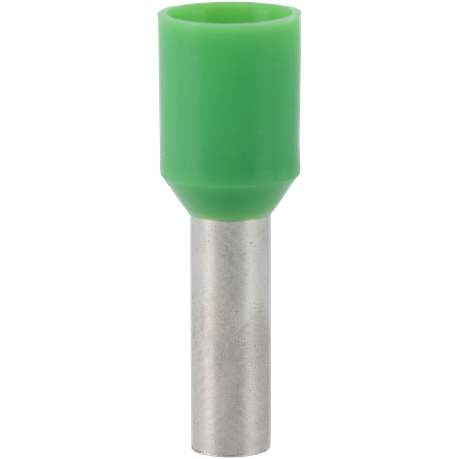

The 6mm Green Boot Lace Ferrule is a precision-engineered, pre-insulated terminal designed to provide clean, secure, and reliable wire terminations for flexible copper conductors. It simplifies assembly, enhances safety, and ensures long-term performance in industrial, commercial, and control panel applications.
Technical Specifications:
- Conductor Size: 6.0 mm (approx. 10 AWG)
- Color Code: Green (DIN 46228-4 standard for 6mm ferrules)
- Barrel Material: Tin-plated high-conductivity copper
- Insulation Sleeve: Durable polypropylene for improved insertion and dielectric protection
- Crimp Type: Deep barrel, suitable for standard ferrule crimp tools
- Recommended Strip Length: 12 mm
Product Features:
- Prevents fraying of wire strands during insertion into terminals or connectors
- Ensures consistent, high-integrity electrical contact
- Color-coded insulation allows fast circuit identification
- Compatible with screw clamp, spring clamp, and push-in terminals
- Ideal for multi-core cable terminations in confined control panel layouts
