SKU: CBI/10A

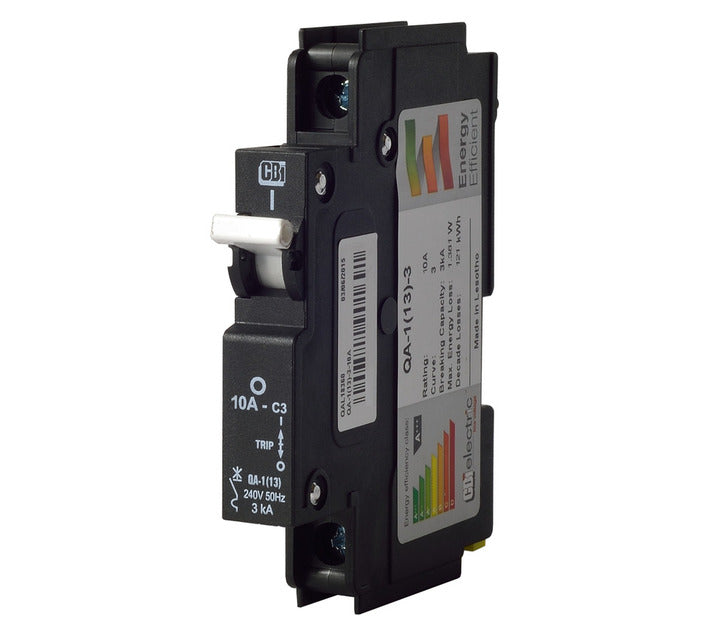

CBI SAMITE 10A 3KA 1P CIRCUIT BREAKER
CBI SAMITE 10A 3KA 1P CIRCUIT BREAKER
In stock
Description
Description
The CBI 10 A 1P 3 kA Samite Mini Circuit Breaker is a reliable and compact over-current protection device — ideal for domestic and light-commercial installations. This single-pole breaker is perfect for lighting circuits, small socket outlets, and low-power appliance connections, offering dependable protection against overloads and short-circuits.
With a 10 A rated current and 3 kA breaking capacity, the breaker ensures safe interruption of potentially dangerous fault currents, protecting wiring and connected devices from damage or fire risk. The hydraulic-magnetic C-curve trip mechanism provides sensitive yet stable performance — fast to react under fault conditions, while tolerant of normal start-up surges or inrush currents from devices like small motors or appliances.
-
Type: Miniature Circuit Breaker (MCB), Single-Pole (1P)
-
Rated Current (In): 10 Amps — suitable for light-load circuits such as lighting, small appliances, or low-power socket circuits.
-
Breaking Capacity (Icu / Ics): 3 kA — able to safely interrupt overloads or short-circuit fault currents up to 3000 A.
-
Rated Voltage: 220 – 240 V AC (standard single-phase supply) — compatible with typical domestic and commercial electrical systems.
-
Mounting / Form Factor: Samite / Mini-rail mount, 13 mm wide module — compact design compatible with standard Samite-type distribution boards / consumer units.
-
Tripping Curve / Characteristic: C-curve (C3) / hydraulic-magnetic trip — for reliable overload and short-circuit protection, with good tolerance to normal inrush or surge currents from devices.
-
Protection Type: Overload protection and short-circuit protection — helps safeguard wiring and connected devices from electrical faults and surges.
-
Pole Configuration: Single-pole — protects one live conductor; ideal for standard single-phase circuits such as lighting, small sockets, or low-power devices.
-
Physical / Build Features: Ultra-compact module (13 mm width), hydraulic-magnetic mechanism, durable plastic housing, mid-trip indication, resettable after trip / overload, suitable for domestic & commercial installations.
-
Standards / Compliance: Compliant with relevant MCB / low-voltage circuit-breaker standards (SANS / IEC / equivalent), suitable for domestic and light-commercial installations.
-
Typical Use Cases: Lighting circuits, small-appliance sockets, small loads, residential wiring, small offices, light commercial buildings — any circuit requiring 10 A protection in a compact Samite rail distribution board.
