SKU: CBI/60A

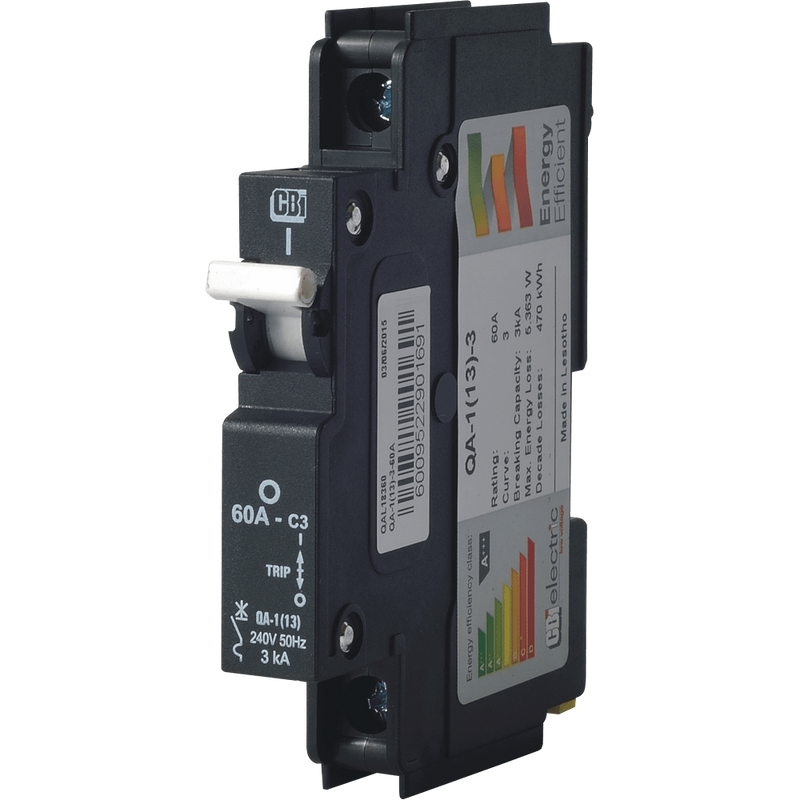

CBI SAMITE 60A 3KA 1P CIRCUIT BREAKER
CBI SAMITE 60A 3KA 1P CIRCUIT BREAKER
In stock
Description
Description
The CBI 60 A 1P 3 kA Samite Mini Circuit Breaker is a high-capacity, single-pole protection device built for demanding single-phase installations — perfect for sub-mains, heavy-load socket banks, or circuits serving large appliances or equipment.
With a 60 A rated current and 3 kA breaking capacity, this breaker provides robust protection against overloads and short-circuit faults, helping safeguard wiring and connected devices from damage or fire risk. Its C-curve hydraulic-magnetic trip characteristic offers a reliable balance: fast to react in fault conditions, yet tolerant of normal inrush or startup surges — minimizing nuisance trips when powering heavy loads or appliances.
-
Type: Miniature Circuit Breaker (MCB), Single-Pole (1P)
-
Rated Current (In): 60 Amps — suited for high-current single-phase circuits, sub-mains feeds, or heavy-load circuits.
-
Breaking Capacity (Icu / Ics): 3 kA — capable of safely interrupting short-circuit or overload fault currents up to 3000 A.
-
Rated Voltage / Supply: ~220–240 V AC (single-phase) — compatible with standard domestic or commercial supply systems
-
Mounting / Form Factor: Samite / Mini-rail mount, compact 13 mm-wide module — fits standard Samite-rail / mini-rail distribution boards or consumer units.
-
Trip Curve / Characteristic: C-curve (C3), hydraulic-magnetic trip technology — gives balanced protection for overloads and short-circuits while tolerating start-up / inrush currents.
-
Poles / Configuration: Single-pole (1P) — protects one live conductor (single-phase circuits).
-
Protection Provided: Overload protection & short-circuit protection — safeguards wiring and connected devices or appliances from faults or surges.
-
Standards / Compliance: Compliant to VC 8036 / SANS 556-1 (low-voltage MCB standard), certified and CE / VDE approved.
