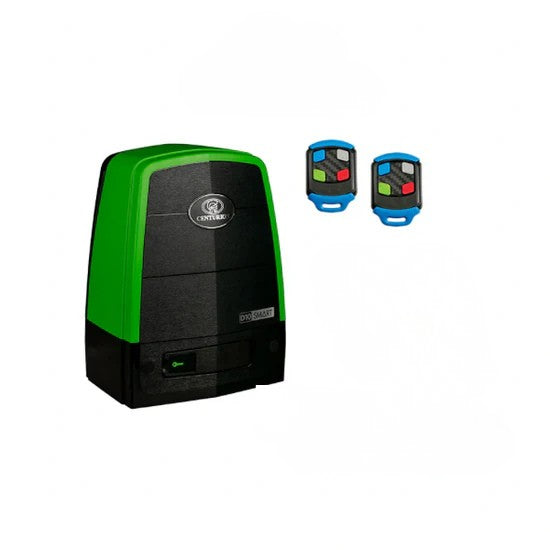

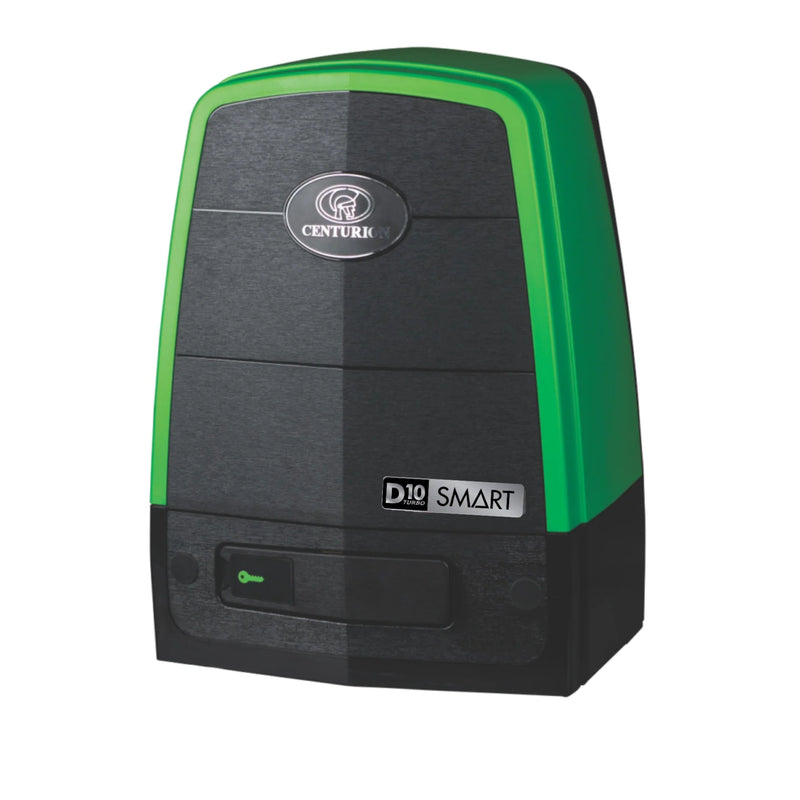

CENTURION D10 SMART SLIDING GATE MOTOR
CENTURION D10 SMART SLIDING GATE MOTOR
Low stock
Description
Description
The Centurion D10 SMART Sliding Gate Motor is a heavy‑duty, industrial‑grade gate operator designed for high‑traffic, commercial, industrial or large residential sliding gates. With a robust 24 V DC motor and die‑cast aluminium gearbox, it delivers powerful, reliable performance for gates up to 1000 kg. Built with SMART technology, this motor offers advanced security, remote‑control flexibility, battery‑backup for power outages, and the durability needed for frequent use — up to 750 gate operations per day.
Whether you need a dependable gate opener for a townhouse complex, office park, warehouse, or large home, the D10 SMART gives you the strength, speed, and advanced features to handle heavy gates and heavy usage with ease.
Specifications – Centurion D10 SMART Gate Motor
-
Model: D10 SMART Sliding Gate Motor
-
Motor Voltage / Power Supply: 24 V DC (battery-driven, with mains charger 90–240 V AC)
-
Maximum Gate Mass: 1000 kg (1 tonne)
-
Maximum Gate Length: 50 m (depends on rack and configuration)
-
Daily Operation Capacity: Up to 750 operations/day
-
Duty Cycle (Mains Present): ~45%
-
Motor Push Force:
-
Starting: 40 kgf
-
Rated / Running: 30 kgf
-
-
Gate Speed: Up to ~26 m/min (varies with load)
-
Battery Backup: 24 V system (2 × 12 V batteries included in some kits) – operates during power outages/load‑shedding
-
Mains Input (Controller): 90–240 V AC ±10%, 50 Hz
-
Remote Receiver: Built-in code-hopping multichannel receiver (433.92 MHz), supports up to 1500 remotes/buttons
-
Smart / Connectivity Features: SMART universal controller; compatible with SMART accessories, app control, GSM modules, and diagnostics
-
Safety & Security:
-
Tamper / vibration sensor for break-in protection
-
Patented theft‑deterrent cage
-
Optional integration with safety beams, electric locks, and other accessories
-
-
Manual Override: Lockable key release for manual gate operation if battery or mains fail
-
Ingress Protection / Housing: IP54-rated housing – weather-resistant, suitable for outdoor installation
-
Operating Temperature Range: –15 °C to +50 °C
-
Unit Weight / Package: Approx. 13 kg (motor + basic kit, excluding rack and batteries)
-
Typical Kit Includes: Motor unit, controller, charger, battery backup (varies by vendor); rack, remotes, base plate, safety accessories usually sold separately
