SKU: D20RSMARTB00
CENTURION D20 SMART SLIDING GATE MOTOR
CENTURION D20 SMART SLIDING GATE MOTOR
In stock
Description
Description

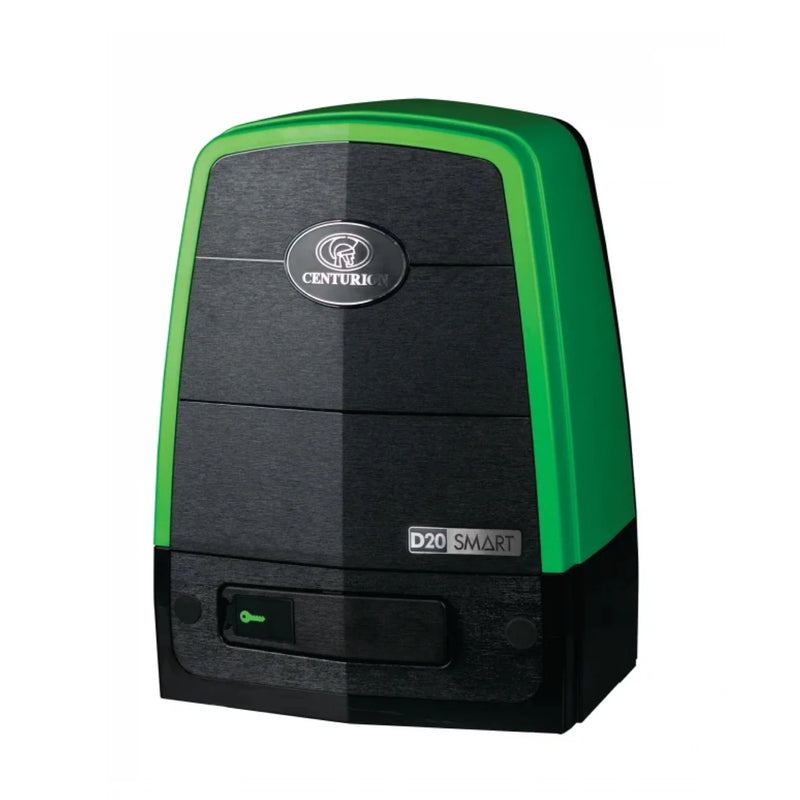

The Centurion D20 SMART is a heavy‑duty sliding‑gate motor designed for strong, reliable automation of large gates. With a powerful 24 V DC drive and SMART‑system integration, this motor handles heavy loads while offering modern convenience and safety features. It is suitable for domestic, commercial or industrial sliding gates where high weight, long gate length, or frequent use is required.
Featuring battery‑backed operation (ideal for load‑shedding or unreliable mains), built-in electronic collision sensing, remote‑code security, and optional solar or accessory support, the D20 SMART combines strength, flexibility and smart control — giving you peace of mind and convenience.
-
Input voltage (mains): 90–240 V AC ±10% @ 50 Hz
-
Mains current consumption (standby/charger): 250 mA
-
Battery charger output: 1.8 A @ 27.4 V ±1%
-
Motor voltage: 24 V DC
-
Battery backup: 2 × 12 V 7.2 Ah batteries (standard)
-
Maximum gate mass: Up to 2,000 kg (2 tonnes)
-
Maximum gate length: Up to 25 m
-
Gate speed: Up to 18 m/min (depending on load)
-
Push force (starting): 52 kgf
-
Push force (rated / continuous): 39 kgf
-
Maximum operations per day: Up to 750 cycles/day
-
Duty cycle (with mains): ~45%
-
Motor current at rated load: ~9 A
-
Manual override: Lockable lever with key release
-
Drive pinion: 13-tooth (Module 4)
-
Collision / obstacle sensing: Electronic collision detection system
-
I/O currents for accessories:
-
I/O 1–4: 100 mA (12/24 V)
-
I/O 5–6: 3 A (12/24 V, 10 s pulse)
-
-
Onboard receiver: Rolling-code multichannel 433.92 MHz, Keeloq encryption
-
Remote storage capacity: Up to 1,500 transmitters
-
Protection rating: IP54 (weather-resistant)
-
Operating temperature range: –15 °C to +50 °C
