SKU: D6SMARTB00

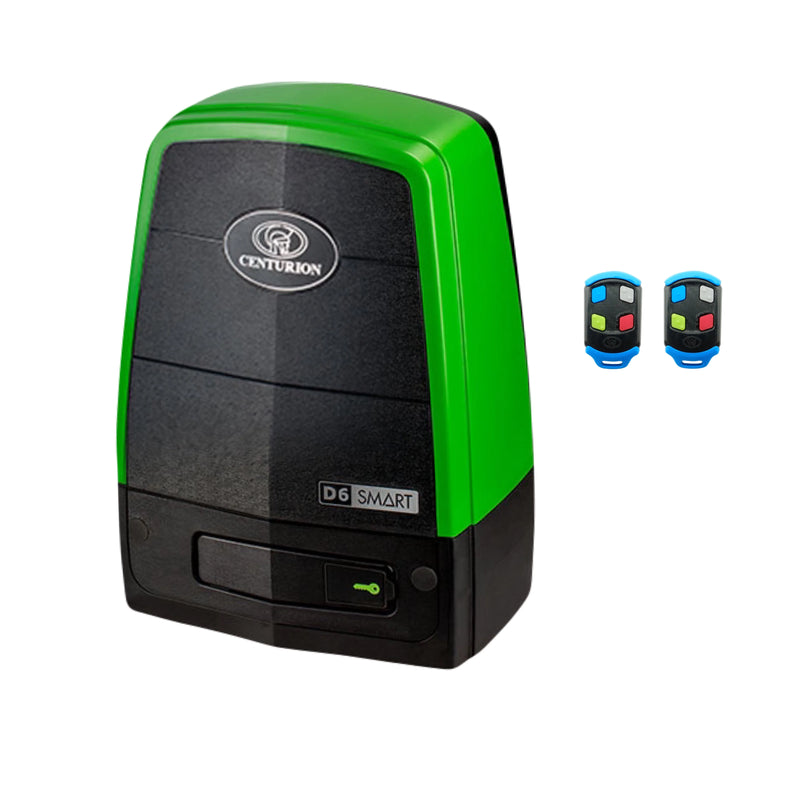

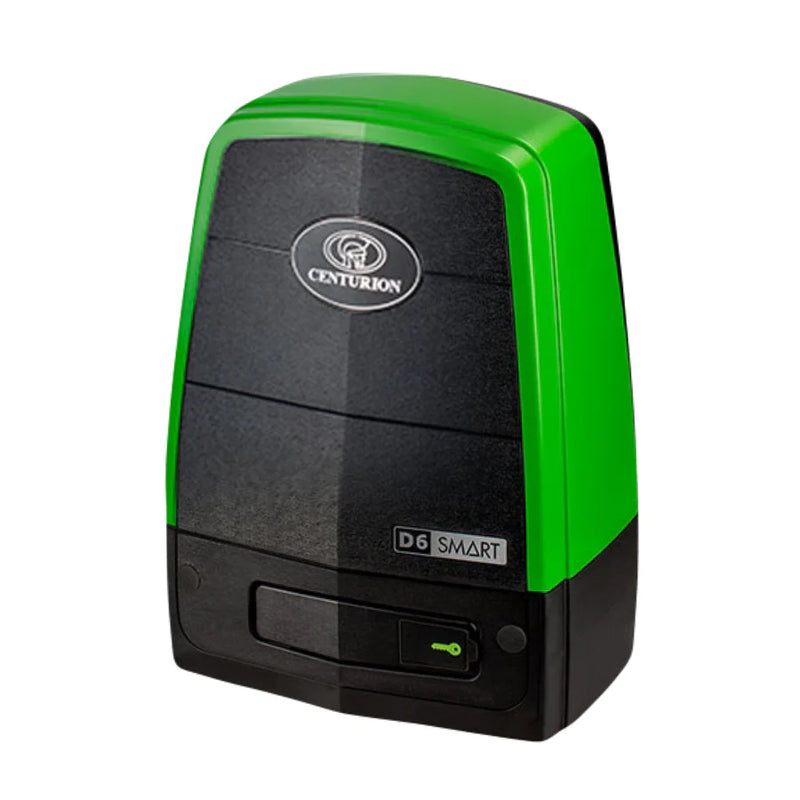

CENTURION D6 SMART SLIDING GATE MOTOR
CENTURION D6 SMART SLIDING GATE MOTOR
In stock
Description
Description
The Centurion D6 Smart Sliding Gate Motor is a high-performance, intelligent gate operator designed for residential or light-industrial sliding gates. Engineered for smooth, secure, and fast gate operation — it offers smart-home convenience, robust safety and backup features, and flexible installation options. With a 24 V battery-driven design (plus mains charger), the motor continues to operate reliably even during power outages — making it a great fit for areas with load-shedding or inconsistent power supply.
Whether you’re upgrading a manual gate or replacing an older motor, the D6 Smart delivers dependable automation with advanced security, remote control and user-friendly smart features.
Key Specifications & Features
-
Model: D6 SMART Sliding Gate Motor
-
Power Supply / Motor Voltage: 24 V DC (battery-driven; charges from 90–240 V AC mains)
-
Mains Input Voltage: 90 V – 240 V AC ± 10% @ 50 Hz
-
Battery Charger Output: 1.3 A
-
Motor Current (rated load): 13 A
-
Starting Push Force: 30 kgf
-
Rated Push Force: 17 kgf
-
Maximum Gate Mass: 600 kg
-
Maximum Gate Length: 100 m (depending on installation)
-
Gate Speed (varies with load): Up to ~ 35–36 m/min (approx. 35 m/min at standard load)
-
Max Operations per Day: ~ 150 operations (when mains present)
-
Duty Cycle (mains present): 50%
-
Accessory Outputs / I/O: 4 configurable I/O ports (100 mA @ 12/24 V) + 2 high-current outputs (3 A @ 12/24 V, 10 s pulse) for accessories such as safety beams, sirens, locks.
-
Manual Override: Lockable key-release for manual gate operation when power/battery fails.
-
Receiver / Remote Control: On-board multichannel code-hopping NOVA receiver — supports up to 1,500 remotes/buttons. Frequency: 433.92 MHz.
-
Safety & Security Features:
-
Electronic collision detection / auto-stop on obstruction.
-
Tamper / vibration-sensor capability (can be connected to third-party alarm or notification system).
-
Compatible with optional theft-resistant cage / anti-theft bracket (recommended for added security).
-
-
Backup / Battery Operation (in event of mains failure): Equipped for battery backup — capable of many gate cycles on battery alone, depending on battery capacity.
-
Environmental / Protection: IP55 rated housing — weather-resistant and suitable for outdoor installation.
-
Operating Temperature Range: –15 °C to +50 °C
Dimensions
Dimensions
- L:
- H:
- Cord:
- Ceiling Cup:
