DYNESS DL 5.12KWH LITHIUM BATTERY
DYNESS DL 5.12KWH LITHIUM BATTERY
Out of stock
Description
Description

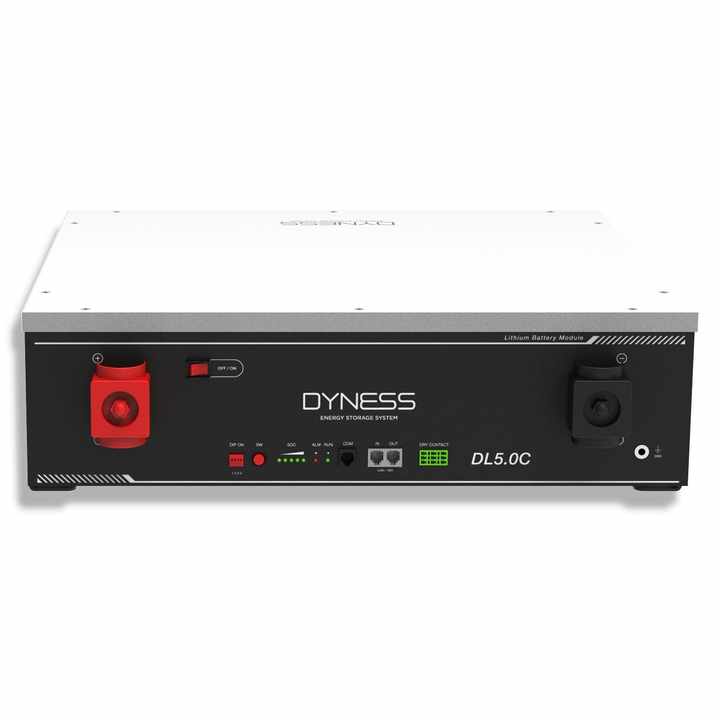

The Dyness DL 5.12 kWh LiFePO₄ battery is a versatile and reliable energy storage solution designed for residential and light-commercial use. Built with quality Lithium Iron Phosphate cells and a smart Battery Management System (BMS), it delivers stable, long-lasting performance for solar systems, backup power, or hybrid energy setups. Its modular design allows for easy expansion — ideal if you plan to grow your energy storage capacity over time. With flexible mounting options (wall-mounted, floor-standing, or stackable), the Dyness DL battery is both space-efficient and installation-friendly. Optional app monitoring and remote updates (OTA) give you real-time control and oversight of your energy system.
Whether you want to store excess solar energy, provide load-shedding backup, or build a scalable battery bank — the Dyness DL 5.12 kWh battery offers a dependable, safe, and efficient solution.
Key Specifications & Features
-
Model: DL5.0C (also sold as DL5.0 / DL5.0 1C)
-
Battery Type: Lithium Iron Phosphate (LiFePO₄ / LFP)
-
Usable Energy Capacity: 5.12 kWh nominal
-
Nominal Voltage: 51.2 V DC
-
Capacity: 100 Ah
-
Operating Voltage Range: ~ 44.8 V – 57.6 V DC
-
Charge/Discharge Rate: up to 1C (i.e. 100 A) continuous discharge
-
Recommended Charge/Discharge Current: ~ 50 A
-
Max Continuous Charge Current: ~ 75 A
-
Peak Discharge / Charge (short bursts): ~ 110 A (for ~15 seconds)
-
Depth of Discharge (DoD): Up to ~ 85–90% (depending on configuration)
-
Cycle Life: ≥ 6000 cycles (at standard conditions)
-
Net Weight: ~ 50 kg (typical listings show 49.9 kg)
-
Dimensions: approximately 558 × 545 × 150 mm (W × D × H)
-

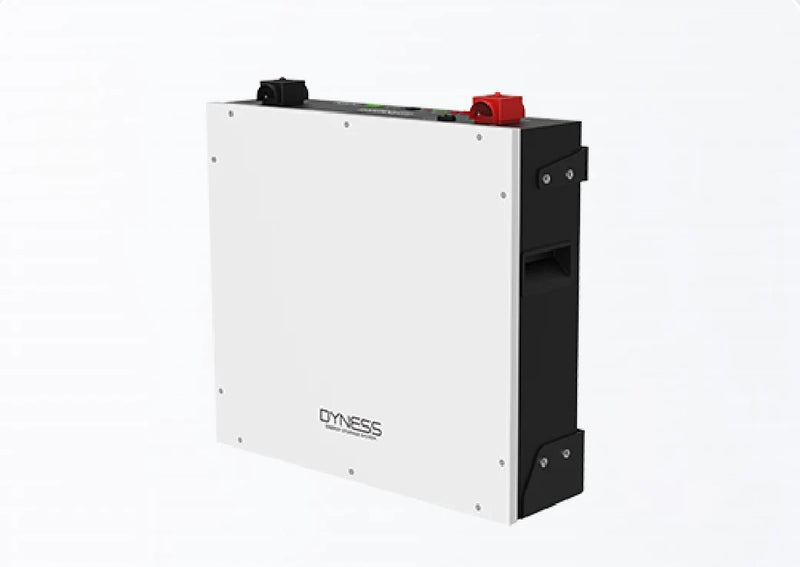

Installation Options: Wall-mount, floor-standing, or stacked / modular — flexible for different setups.
-
Scalability / Expansion: Can connect up to 50 units in parallel — enabling storage capacity from 5.12 kWh up to ~256 kWh.
-
Communication / BMS / Monitoring: Supports CAN / RS485 / RS232 (for BMS/inverter communication and monitoring). Remote update & app monitoring optional.
-
Protection & Safety: Built-in battery management system to protect against over-charge, over-discharge, over-current, and ensure cell balancing. Uses safe LFP chemistry for thermal stability and long life.
-
Use Cases: Residential solar battery storage, backup power (e.g. during load-shedding), hybrid/off-grid systems, expandable battery banks.
-
Certifications & Standards: Meets common lithium battery safety and transport standards — typically certified under UN38.3, CE-EMC, IEC 62619 (depending on retailer / region)
