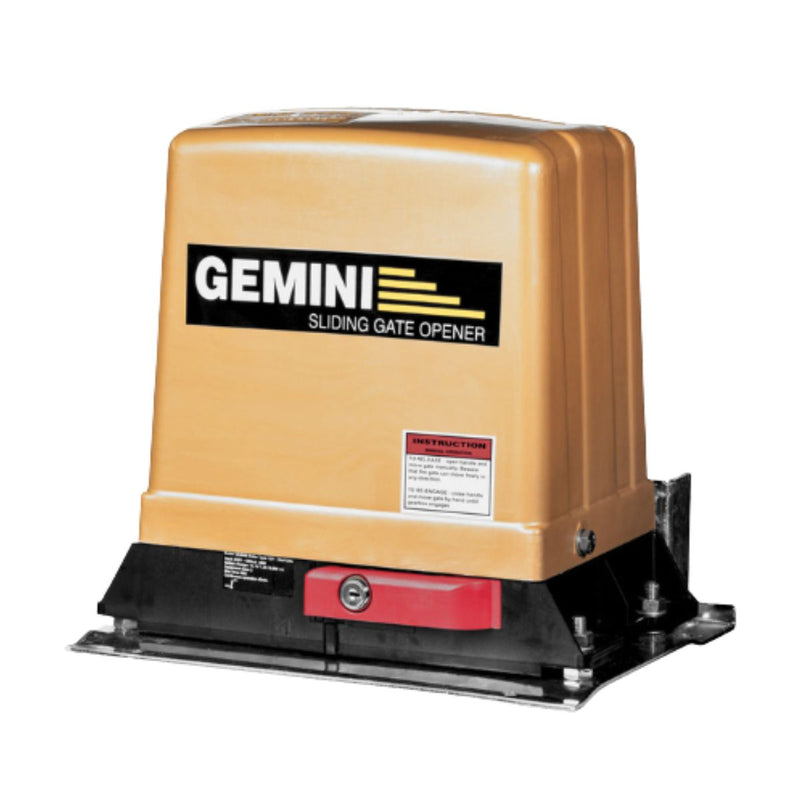

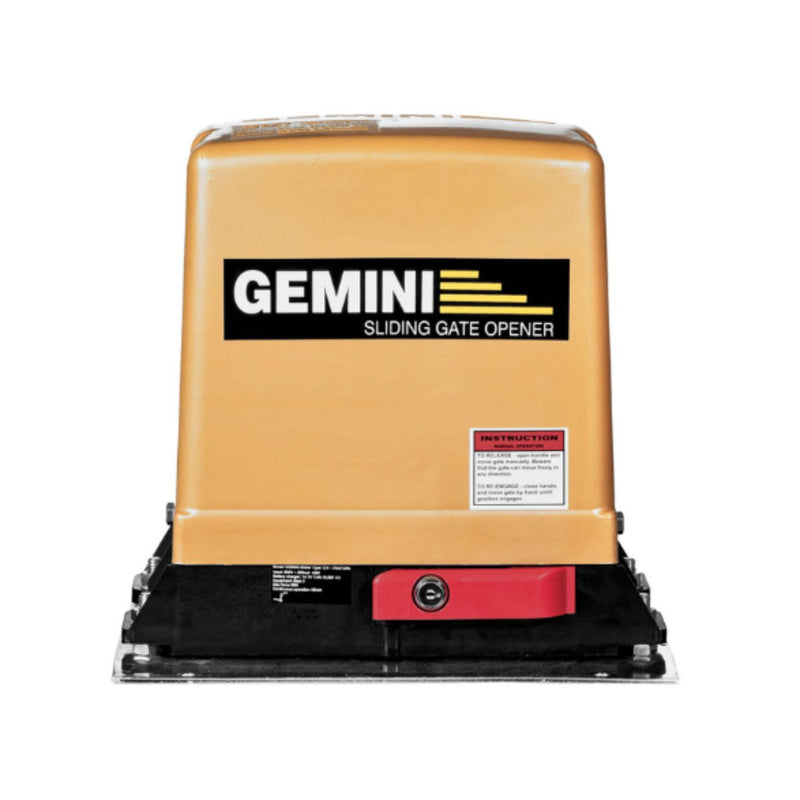

GEMINI 12V 7AH DC SLIDING GATE MOTOR
GEMINI 12V 7AH DC SLIDING GATE MOTOR
In stock
Couldn't load pickup availability
We accept
Description
Description
The Gemini 12V DC Sliding Gate Motor is designed to automate residential sliding gates weighing up to approximately 500kg, subject to installation conditions. Its 120W motor uses an oil-filled worm-drive gearbox, with soft-start and soft-stop functions for controlled opening and closing.
Electronically adjustable obstruction sensing, an automatic closing timer and pedestrian access provide practical control for everyday use. The battery-operated system can continue working during load-shedding when a suitable 12V 7.2Ah battery is installed (battery not included). Solar compatibility and support for Gemlink (not included) smart technology offer additional options for residential gate automation.
Note: Gate weight capacity, daily openings and performance may vary depending on installation conditions, gate operation and battery condition. All specifications are subject to change without notice.
Specifications:
- Brand: Gemini
- Application: Residential
- Motor Type: DC sliding gate motor
- Motor Power: 120W
- Motor Voltage: 12V DC
- Maximum Gate Weight: Approximately 500kg
- Gearbox: Oil-filled worm drive
- Gearbox Ratio: 33:1
- Starting Pull Force: 30kgf
- Rated Pull Force: 17kgf
- Gate Speed: 19m/min
- Openings Per Day: 150
- Duty Cycle: 75%
- Battery: 12V 7.2Ah (battery not included)
- Electrical Consumption: 220–260V / 150mA
- Obstruction Sensing: Electronically adjustable
- Activation: Normally open (N/O) electrical circuit
- Gemlink Smart Compatible: Yes (Not included)
- Solar Compatible: Yes
- Automatic Closing: Adjustable from 2–60 seconds
- Onboard Receiver: Supports up to 30 remotes
- Boxed Dimensions: 360 x 285 x 400mm
- Boxed Weight: 14kg
- Warranty: 1 year
Applications:
- Residential sliding gates
- Automated home entrances
- Gates weighing up to approximately 500kg, subject to installation conditions
- Solar-compatible gate automation systems
- Residential access control with remote operation
- Properties requiring battery backup during load-shedding
What's in the Box:
- 1 x Gemini 12V 7Ah DC Sliding Gate Motor
- 2 x 3-button remote controls
- 1 x Gear oil
- 2 x Gate motor keys
