SKU: S00305

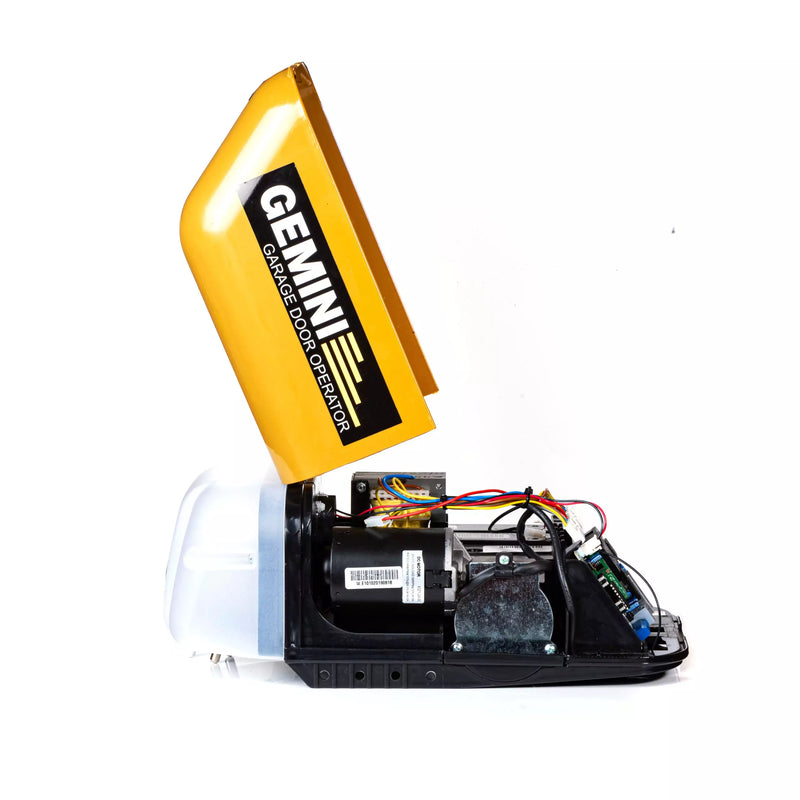

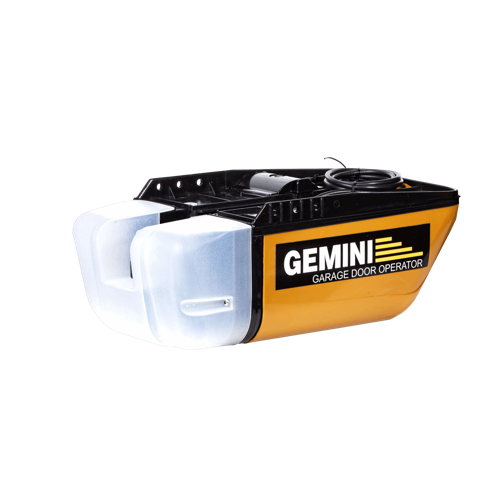

GEMINI SECTIONAL 24V GARAGE DOOR MOTOR
GEMINI SECTIONAL 24V GARAGE DOOR MOTOR
Out of stock
Description
Description
Automate your sectional (or tip‑up) garage door with the reliable Gemini 24 V garage door motor — a battery‑backed unit designed to offer smooth, quiet, and safe operation. The 24 V DC motor, combined with worm‑drive gearing and electronic sensors, ensures consistent door lifting even during power outages. With features like soft start/stop, adjustable force sensing, manual override and built‑in courtesy light, this motor makes everyday garage access easy, secure and hassle-free.
-
Motor voltage: 24 V DC
-
Motor power: 35 W
-
Battery backup: 2 × 12 V 2.4 Ah batteries (included)
-
Door speed: ~11 m/min
-
Pull / lifting force: ~10 kgf
-
Recommended daily cycles: ~20 openings/day
-
Activation: Normally‑Open (N/O) electrical circuit — push-button or remote control
-
Safety / obstruction sensing: Electronic, adjustable force sensors (opening & closing)
-
Manual override: Yes — for power failure or maintenance
-
Courtesy light: Built-in garage light during door operation
-
Remote control / receiver: Supports multiple remotes; remotes included in kit
-
Thermal / overload protection: Built-in for motor safety and durability
-
Supported door type: Sectional / tip-up residential garage doors
-
Kit contents: Motor unit, batteries, remotes, mounting hardware
Dimensions
Dimensions
- L:
- H:
- Cord:
- Ceiling Cup:
