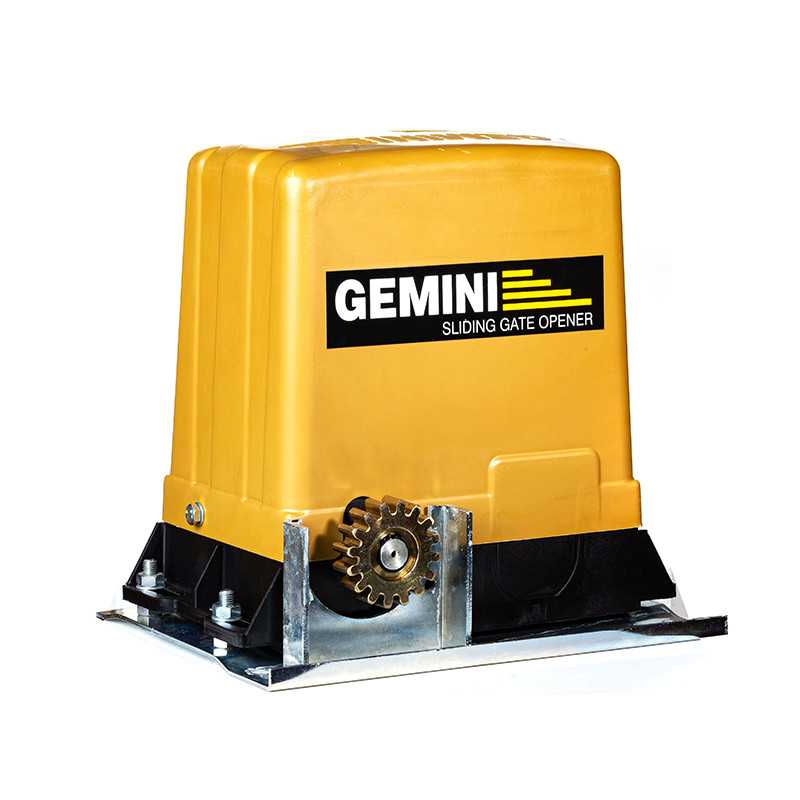

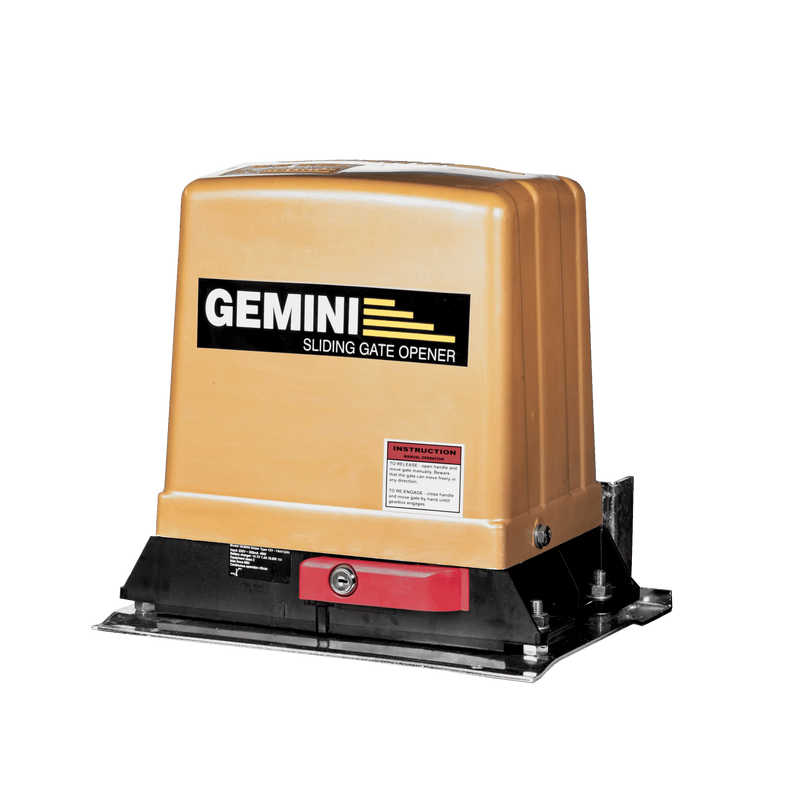

GEMINI 12V 12AH DC SLIDING GATE MOTOR
GEMINI 12V 12AH DC SLIDING GATE MOTOR
Low stock
Couldn't load pickup availability
We accept
Description
Description
The Gemini 12v 12Ah DC Slider is a 12V DC gate motor designed to automate residential sliding gates weighing up to 500kg, subject to installation conditions. Its 120W motor uses an oil-filled worm-drive gearbox, with soft-start and soft-stop functions for controlled opening and closing.
Electronically adjustable obstruction sensing, an automatic closing timer and pedestrian access provide practical control for everyday use. The system can continue operating during load-shedding when a suitable 12V 12Ah battery is installed (battery not included). It also supports solar systems and Gemlink Smart technology, with the Gemlink unit sold separately.
Note: Gate weight capacity, daily openings and performance may vary depending on installation conditions, gate operation and battery condition. All specifications are subject to change without notice.
Specifications:
- Brand: Gemini
- Model: 12V 12Ah DC Slider
- Application: Residential
- Motor Type: DC sliding gate motor
- Motor Power: 120W
- Motor Voltage: 12V DC
- Maximum Gate Weight: Approximately 500kg
- Gearbox: Oil-filled worm drive
- Gearbox Ratio: 33:1
- Starting Pull Force: 30kgf
- Rated Pull Force: 17kgf
- Gate Speed: 19m/min
- Openings Per Day: 200
- Duty Cycle: 75%
- Battery: 12V 12Ah (battery not included)
- Electrical Consumption: 220–260V / 150mA
- Obstruction Sensing: Electronically adjustable
- Activation: Normally open (N/O) electrical circuit
- Gemlink Smart Compatible: Yes (Gemlink not included)
- Solar Compatible: Yes
- Automatic Closing: Adjustable timer
- Onboard Receiver: Supports up to 30 remotes
- Warranty: 1 year
Applications:
- Residential sliding gates
- Automated home entrances
- Gates weighing up to 500kg, subject to installation conditions
- Solar-compatible gate automation systems
- Residential access control with remote operation
- Properties requiring battery backup during load-shedding (battery not included)
What's in the Box:
- 1 x Gemini 12V 12Ah DC Slider Gate Motor
- 2 x 3-button remote controls
- 1 x Gear oil
- 2 x Gate motor keys
