GEMINI 24V 8AH SLIDING GATE MOTOR
GEMINI 24V 8AH SLIDING GATE MOTOR
In stock
Couldn't load pickup availability
We accept
Description
Description

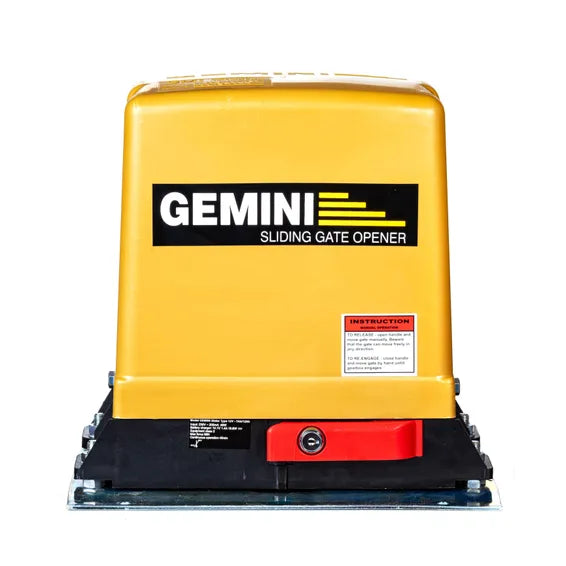

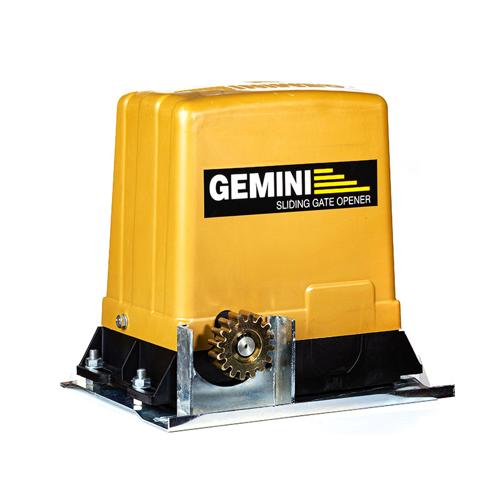

The Gemini 24V 8Ah Complex Sliding Gate Motor is a 24V DC motor designed to automate light industrial sliding gates weighing up to 800kg. Its 120W motor uses an oil-filled worm-drive gearbox with a 33:1 ratio and supports up to 400 openings per day, subject to gate and battery (not included) conditions.
Electronically adjustable obstruction sensing, soft-start and soft-stop functions, an adjustable automatic closing timer and pedestrian access provide practical control for daily operation. The motor supports a 24V 8Ah battery (not included) and Gemlink Smart technology (included), with solar compatibility and an onboard receiver supporting up to 30 remotes. GSM compatibility, a courtesy light facility and an optional operating buzzer provide further options for access control.
Note: Gate weight capacity, daily openings and performance may vary depending on installation conditions, gate operation and battery condition. All specifications are subject to change without notice.
Specifications:
- Brand: Gemini
- Model: 24V Complex
- Application: Light industrial
- Motor Type: DC sliding gate motor
- Motor Power: 120W
- Motor Voltage: 24V DC
- Maximum Gate Weight: 800kg
- Gearbox: Oil-filled worm drive
- Gearbox Ratio: 33:1
- Starting Pull Force: 33kgf
- Rated Pull Force: 18kgf
- Gate Speed: 23–26m/min
- Openings Per Day: 400
- Duty Cycle: 75%
- Battery: 24V 8Ah (not included)
- Electrical Consumption: 220–260V / 150mA
- Obstruction Sensing: Electronically adjustable
- Gemlink Smart: Compatible (included)
- Solar Compatible: Yes
- Automatic Closing: Adjustable timer (2–60 seconds)
- Mechanical Override: Yes
- Battery Operated: Yes (battery not included)
- Soft Start and Stop: Yes
- Onboard Receiver: Supports up to 30 remotes
- Fuses Included: 5
- Boxed Motor Dimensions: 370 x 320 x 500mm
- Boxed Weight: 20kg
- Warranty: 1 year
Applications:
- Light industrial sliding gates
- Automated industrial and commercial entrances
- Sliding gates weighing up to 800kg
- Properties requiring remote-controlled gate access
- Solar-compatible gate automation systems
- Installations requiring pedestrian access functionality
- Sites requiring battery-operated gate automation (battery not included)
What's in the Box:
- 1 x Gemini gate motor
- 2 x 3-button remote controls
- 1 x Gemlink Smart
- 1 x Gear oil
- 2 x Gate motor keys
- 5 x Fuses
