SKU: E/MER41

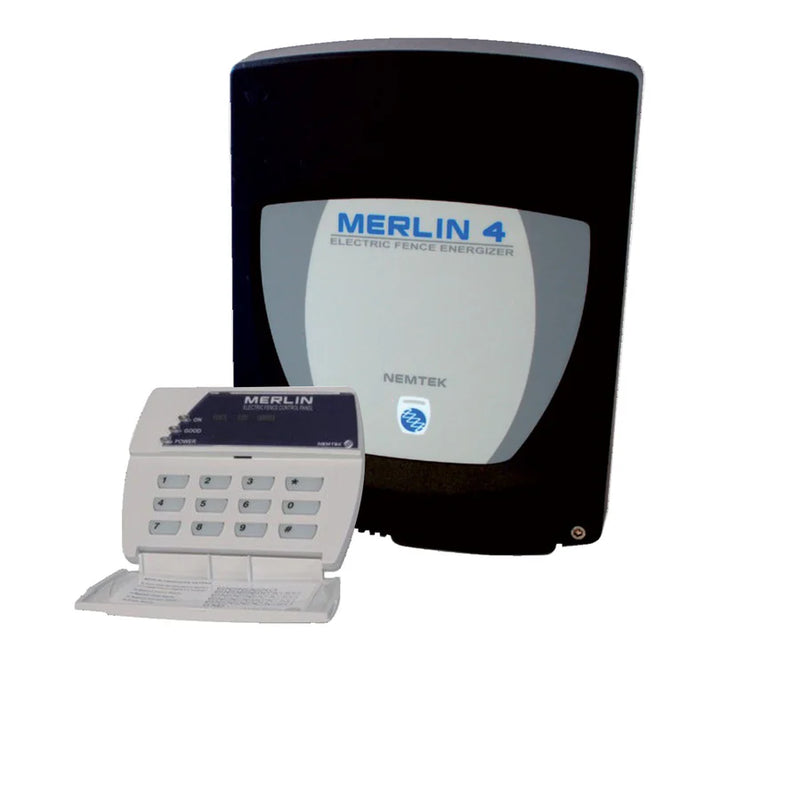

NEMTEK MERLIN 4 ELECTRIC FENCE ENERGIZER
NEMTEK MERLIN 4 ELECTRIC FENCE ENERGIZER
In stock
Description
Description
The Nemtek Merlin 4 is a powerful, reliable and user‑friendly electric fence energizer designed for both residential and light commercial perimeter security. Built for durability and convenience, it delivers a strong 3.7 Joule output with up to 8 000 V open‑circuit voltage — enough to secure moderate‑length fence lines while offering stable, consistent performance.
Equipped with a built-in rechargeable battery (plus mains power), the Merlin 4 ensures that your fence remains active even during power outages — offering around 24 hours of standby protection on a fully charged battery.
What sets the Merlin 4 apart is the included keypad control: you can install the unit near the fence while placing the keypad up to 100 m away — making arming, disarming or adjusting settings more convenient. The keypad gives you flexibility: adjust output voltage, toggle gate or siren outputs, switch between high/low voltage modes (e.g. lower output if children or pets are near), and bypass alarm outputs when needed.
Key Specifications — Merlin 4
-
Output Energy: 3.7 Joule (to 500 Ω load)
-
Open‑Circuit Voltage: ~ 8,000 V
-
Zones: Single‑zone (one fence circuit)
-
Power Supply: 240 V AC mains + built-in 12 V rechargeable battery backup (7 Ah typical)Typical Power Consumption: ~ 18 VA during normal operation
-
Backup/Standby Time: ~ 24 hours on a fully charged battery (depending on load)
-
Enclosure Size: 285 mm (L) × 212 mm (W) × 120 mm (D)
-
Weight: ~ 3.1 kg (without battery) / ~ 5.3 kg (with 7 Ah battery)
-
Housing Protection (IP Rating): IPx4 (weather/splash-resistant enclosure)
-
Operating Temperature Range: –10 °C to +50 °C
-
Operating Humidity: < 80% (non‑condensing)
