SKU: RENTECH/2.56KW

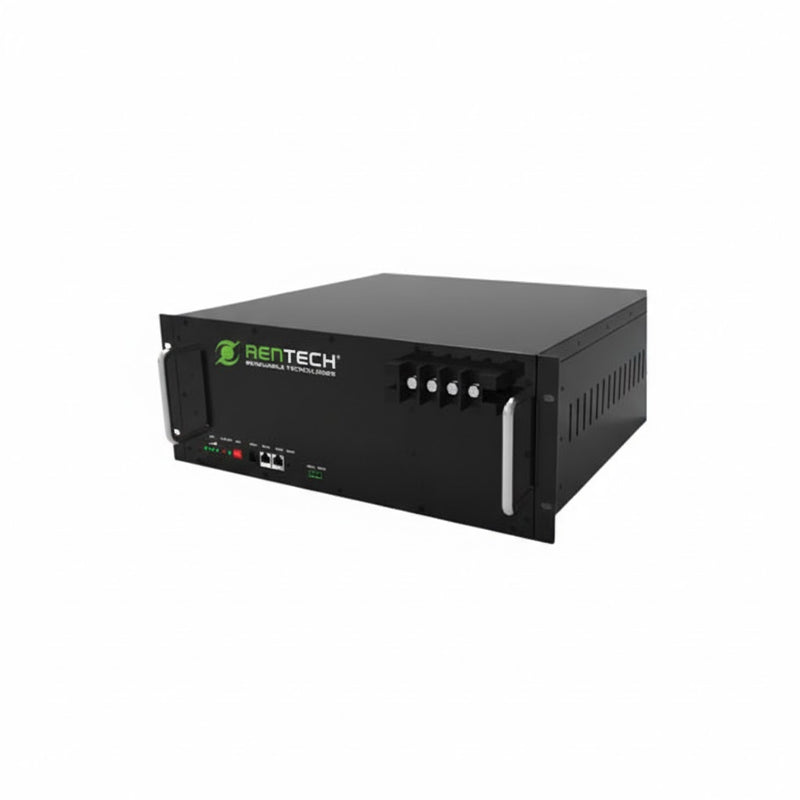

RENTECH 2.56KWH 24V LITHIUM BATTERY
RENTECH 2.56KWH 24V LITHIUM BATTERY
Out of stock
Description
Description
A high-performance 24 V lithium-ion battery designed for solar energy storage systems, backup power, inverters, and off-grid applications. Built with safe, reliable Lithium Iron Phosphate (LiFePO₄) cells, and protected by a built-in Battery Management System (BMS). Perfect for stacking a battery bank by paralleling multiple units for increased capacity.
-
Battery Type: Rack-mounted Lithium Iron Phosphate (LiFePO₄)
-
Nominal Voltage: 25.6 V
-
Capacity: 100 Ah
-
Usable Energy: ± 2.56 kWh
-
Battery Chemistry: LiFePO₄ (LFP)
-
Cycle Life: Up to 6000 cycles @ 80% DOD
-
Maximum Continuous Discharge Current: ~50 A
-
Peak Discharge Power (3 sec): ± 3360 W
-
Maximum Charge Current: ± 20 A
-
Recommended Charge Voltage: 27.6 V
-
End-of-Discharge Voltage (LVD): 22 V
-
Operating Temperature:
-
Charge: 0°C to +55°C
-
Discharge: –20°C to +55°C
-
-
Mounting: 19-inch rack-mount enclosure
-
Parallel Connection: Supported (expandable battery bank)
-
Built-in BMS: Overcharge, over-discharge, over-voltage, short-circuit & temperature protection
-
Dimensions: ± 442 × 400 × 133 mm
-
Weight: ± 28 kg
-
Communication Ports: RS485 / CAN (varies by model)
-
Application: Solar storage, home/office backup, telecom, inverter systems
