SHOTO 5.12KWH 48V LITHIUM-ION BATTERY
SHOTO 5.12KWH 48V LITHIUM-ION BATTERY
In stock
Couldn't load pickup availability
We accept
Description
Description

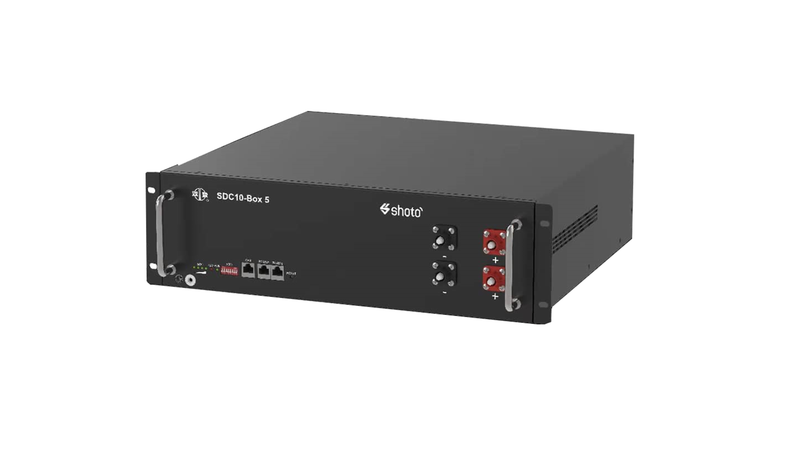

The Shoto 5.12kWh 48V Lithium-Ion Battery is a home energy storage battery built on LiFePO₄ (Lithium Iron Phosphate) chemistry. It is designed for use with solar hybrid inverter systems, backup power installations, and off-grid applications. The battery includes an integrated BMS (Battery Management System) that protects against overcharge, over-discharge, overcurrent, and temperature extremes.
The Shoto battery is rated for up to 6000 cycles and supports a depth of discharge up to 90%, giving a usable capacity of approximately 4.6kWh per unit. Multiple units can be connected in parallel to expand system capacity. It is compatible with a wide range of popular hybrid inverters including Growatt, Victron, Sofar, Deye, and Luxpower, and carries TUV (IEC 62619), UN38.3, and CE-EMC certifications.
Specifications:
- Charge Voltage: 54.0–56.4V
- Discharge Voltage: 45.0–48.0V
- Recommended Charge/Discharge: 50A (0.5C)
- Maximum Current: 100A (1C)
- Communication: CAN & RS485
- Operating Temperature: Charge 0 to +45°C; Discharge -20 to +50°C
- Storage Temperature: -20 to +35°C
- Protection Rating: IP20
- Weight: 40 ± 2kg
- Dimensions: 443 ± 2 × 135 ± 2 × 440mm
- Available Capacity: 4.1kWh recommended; 5.12kWh maximum
- Maximum Output Power: 4.1kW
- Peak Output Power: 5.4kW for 10 seconds
- Maximum Charge Current: 50A
- Maximum Discharge Current: 100A
- Charge/Discharge Efficiency: ≥97%
- Cycle Life: ≥6000 cycles @ 80% DoD & 70% EoL
- Installation: Embedded, wall-mounted or stacked
- Rack Compatibility: 19-inch / 23-inch
- Parallel Expansion: Up to 20 units
- Cell Type: 100Ah LFP Prismatic Cell
- Cooling: Natural cooling
- Humidity: 5–95% non-condensing
- Maximum Altitude: ≤4000m
- Compatibility: Deye, Growatt, Sofar, Victron, Sunsynk and Luxpower
- Certifications: UL1973, IEC62619, CE, UN38.3 and CEI 0-21
- Warranty: 5 Years
Applications:
- Solar hybrid inverter systems for homes and small businesses
- Backup power and load-shedding protection
- Off-grid energy storage installations
- Scalable storage systems requiring parallel battery expansion
What's in the Box:
- 1 x Shoto 5.12kWh 48V Lithium-Ion Battery
- Communication Cables
- Battery Cables
