SKU: PSF/B01

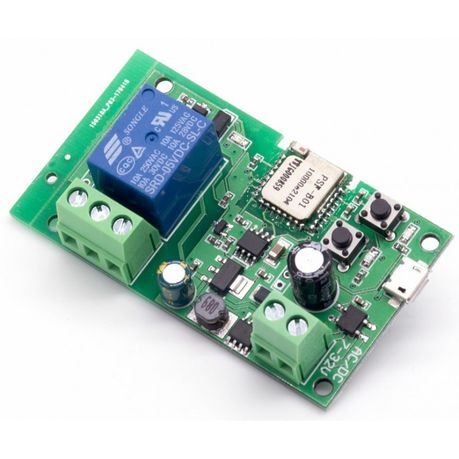

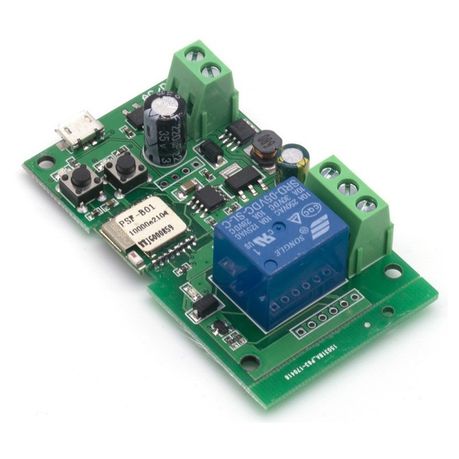

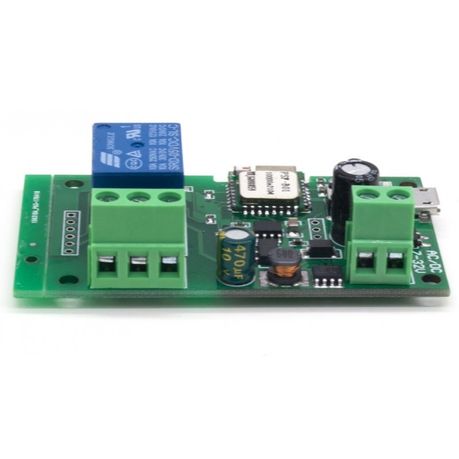

SONOFF WIFI INCHING SWITCH
SONOFF WIFI INCHING SWITCH
In stock
Description
Description
Enables remote control of home appliances through the mobile application eWeLink, available on both Android and iOS. Supported functions include:
Remote turn on/off
Timing Schedules
Device Sharing
Group Management
Works with Amazon Echo, Echo Dot, Amazon Tap
Works with Google Home, Google Nest
Works with IFTTT
Note: we have change the WiFi module from PSA to PSF recently. PSF is more powerful.
Works With Amazon Alexa
This product works with Amazon Alexa. You can ask Alexa to control the device with the following voice commands. Please note that only US/UK English and German voice commands are supported now.
Try out these phrases ( {device Name} should be the name of your device):
Alexa, turn on {device Name}
Alexa, turn off {device Name}
Alexa, turn {device Name} off
Alexa, turn {device Name} on
5V self-lock/inching mode wireless switch?
5V/12V self-lock/inching mode wireless switch?
There are two working modes for the product: inching mode and self-locking mode. Users can press the self-lock/inching mode button to switch between these two modes.
When the module is switched to self-locking mode, users can turn on/off the connected appliance instantly. There are two wiring way.
When the module is switched to inching mode, users can press on/off toggle button to turn on or off connected device. There are two kinds of wiring way.
The first wiring option is to connect COM and NO with an appliance. In this case, when users press the setting button or use the APP to switch on, all connected appliance will be switched on for 1s and then automatically turned off.
The second wiring method is to connect NC and COM with an appliance. In this way, when users press the setting button or use the APP to switch off, all connected appliance will be turned off for 1s and then automatically turned on.
LED Indicator:
There are 3 LED indicators. The LED next to the self-lock/inching mode button indicates the working mode (on: self-locking mode, off: inching mode).
The LED next to the on/off setting button indicates WIFI status(enter pairing status: long press the setting button until LED blinks fast).
And the one below the relay indicates relay on or off status (on: turn on the connected device, off: turn off the connected device).
Note: the two models are not hackable.
Specification
Dimensions:70.5 x 27.4 x 23mm
Power supply: 5V/12V DC
LEDs: 3 LEDs which indicates working mode, wifi status, relay on/off status respectively.
Two input interfaces
Board consumption: <1W
Standby current: 80mA
Max input current: 10A
Supports to control different voltage ranges
Relay lifespan: more than one million times
100M electrical insulation resistance
Electric shock voltage: 1000V
Relay maximum pull time: 15ms
Relay maximum release time: 5ms
Operating temperature: 0ºC-40ºC(32°F-104°F)
Operating Humidity 40% ~ 80% RH
