SKU: VOLTA/5.12KWH

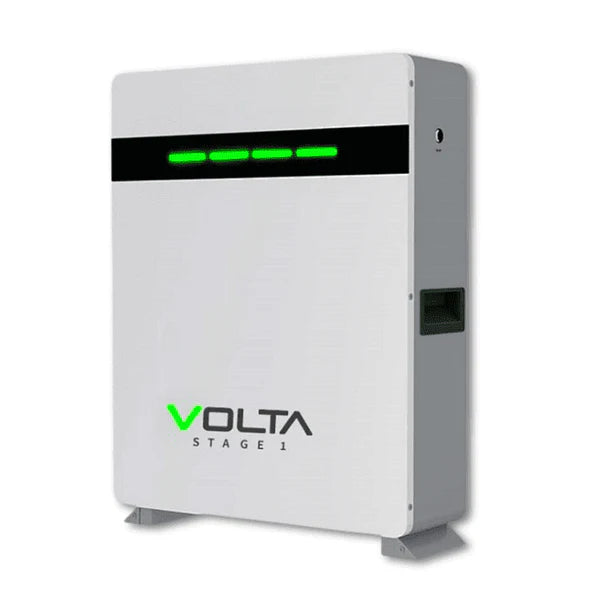

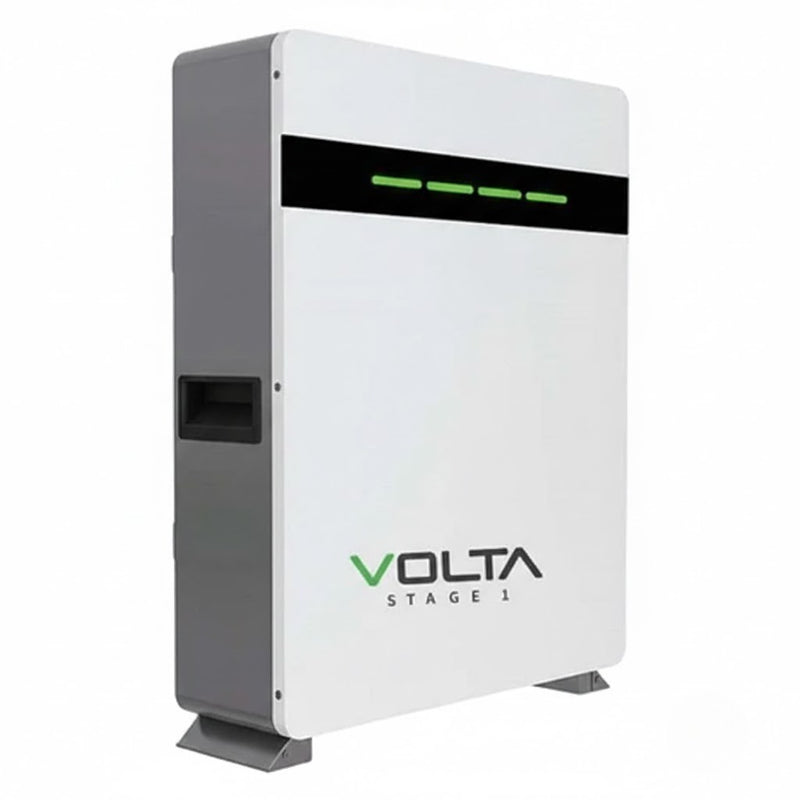

VOLTA STAGE 1 5.12KWH FIRST GEN LITHIUM BATTERY
VOLTA STAGE 1 5.12KWH FIRST GEN LITHIUM BATTERY
In stock
Description
Description
(10 Year Warranty)
The Volta Stage 1 Old Gen 5.12 kWh lithium-ion battery is a dependable and efficient energy storage solution designed for homes, small businesses, and solar installations. Built using premium LiFePO₄ (Lithium Iron Phosphate) cells, it delivers safe, stable, and long-lasting power storage performance.
With a practical, installation-friendly design, this battery supports both wall-mount and floor-standing configurations, making it suitable for a wide range of installation environments. The integrated smart Battery Management System (BMS) enhances operational safety and extends battery lifespan through intelligent monitoring and protection controls.
Ideal for solar energy storage, load-shedding backup, and hybrid inverter systems — the Volta Stage 1 First Gen provides reliable power performance with proven durability.
Key Specifications & Features
Model: Volta Stage 1 First Gen 5.12 kWh
Cell Type: Lithium Iron Phosphate (LiFePO₄ / LFP)
Energy Capacity: 5.12 kWh nominal energy
Nominal Voltage: 51.2 V DC
Capacity: 100 Ah nominal
Charge / Discharge Rate: 1C / 1C continuous charge and discharge
Standard Charge Voltage: ±56 V DC
Maximum Discharge Current: 100 A
Discharge Cut-off Voltage: 44.8 V DC
Cycle Life: ≥ 6000 cycles at 80% Depth of Discharge (DoD)
Scalability / Parallel Connection: Supports multiple modules in parallel for expanded capacity (up to 8 units depending on configuration)

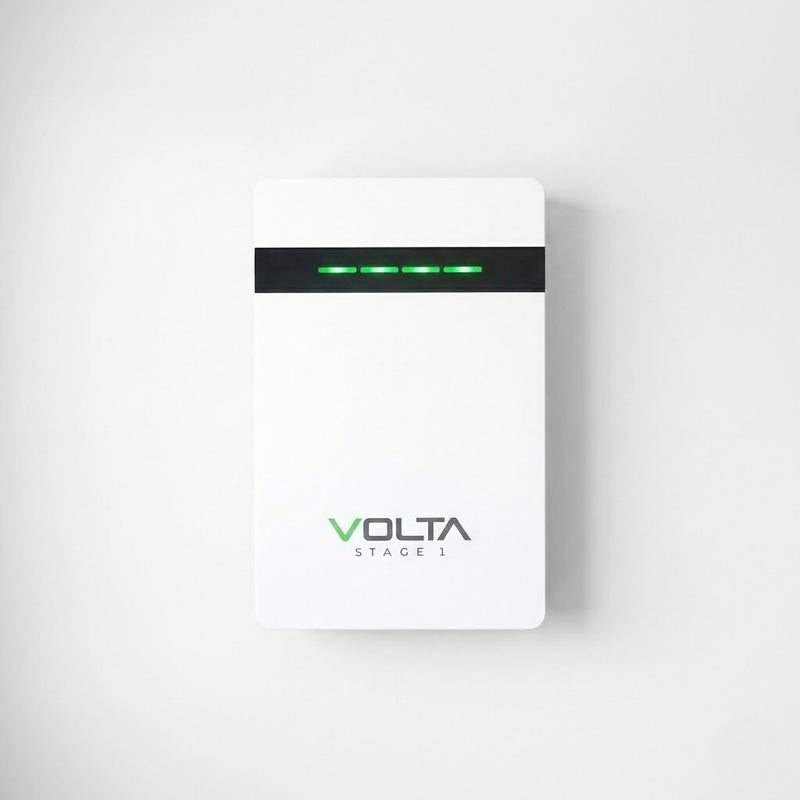

Installation Options: Wall-mount (bracket included) or floor-standing — adaptable to various installation spaces
Communication / BMS Interfaces: RS485, RS232 and CAN (inverter dependent)
Safety & Protections: Smart BMS includes over-charge, over-discharge, over-current, short-circuit, and temperature protections
Operating Temperature Range:
• Charge: 0 °C to +60 °C
• Discharge: –20 °C to +60 °C
